What's New?

Read the latest edition of Snippets Newsletter (Issue 9) in PDF format.

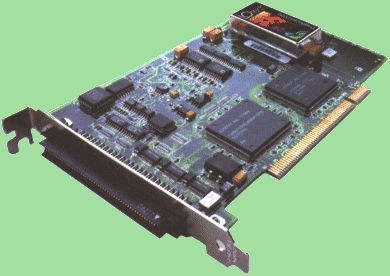

DAQBOARD/2000 - 16 bit, 200kHz PCI data acquistion for £495!!!

The new PCI multifunction DaqBoard/2000 from IOtech offers 16-bit performance for a 12-bit price. No other board packs so many features into one product - 16-bit 200kHz A/D, 16-bit 100kHz D/A 40 digital I/O, 6 counter timers, 100% digital calibration, and bus mastering for synchronous A/D, D/A, digital I/O and counter inputs.

DaqBoard/2000 is supported by a family of over 30 signal conditioning and expansion options for thermocouples, accelerometers, isolation, high voltage, strain gauges and many more application specific extras. Up to 470 channels of analogue and digital I/O can be accessed using one DaqBoard/2000, while maintaining the 5 micro second per channel update rate.

Software support is the most comprehensive of any board which includes drivers and programming tools for Visual Basic, C++, Delphi for Windows 95/98/2000/NT, DASYlab, TestPoint and LabVIEW. For 'Out-of-the-Box' set up, acquisition, analysis and display of acquired data with no programming required, IOtech's DaqView/2000 is also available. In short, the DaqBoard/2000 sets a new industry standard for Plug-and-Play PCI data acquisition - at a budget price.
DaqBoard/2000 - only £495!!!



DAP5200a BOARD

The DAP 5200a model brings many more real-time data acquisition and control applications within the scope of Windows systems. Its onboard 300 MHz processor increases the real-time processing power of the top end of the DAP line by a factor of almost four. Real-time processing functions include smoothing, filtering, FFT, PID control, and responding to alarm conditions; the DAP 5200a also can scan high-speed data for trigger events in real time to capture pre-trigger as well as post-trigger data. The 14-bit A/D samples inputs at up to 800k samples per second and the 12-bit D/A updates analog outputs at up to 1666k samples per second, with expandable analog and digital inputs/outputs, making the DAP 5200a ideal for a huge range of high performance applications.

 Sampling speed: 800K samples/s
 Resolution: 14-bit
 Connectivity: PCI
 Analogue channels: 16 - 512
 Digital i/o channels: 16 - 1024
 Power: N/A
 Dimensions: Full-length PCI
 DAP5200a
